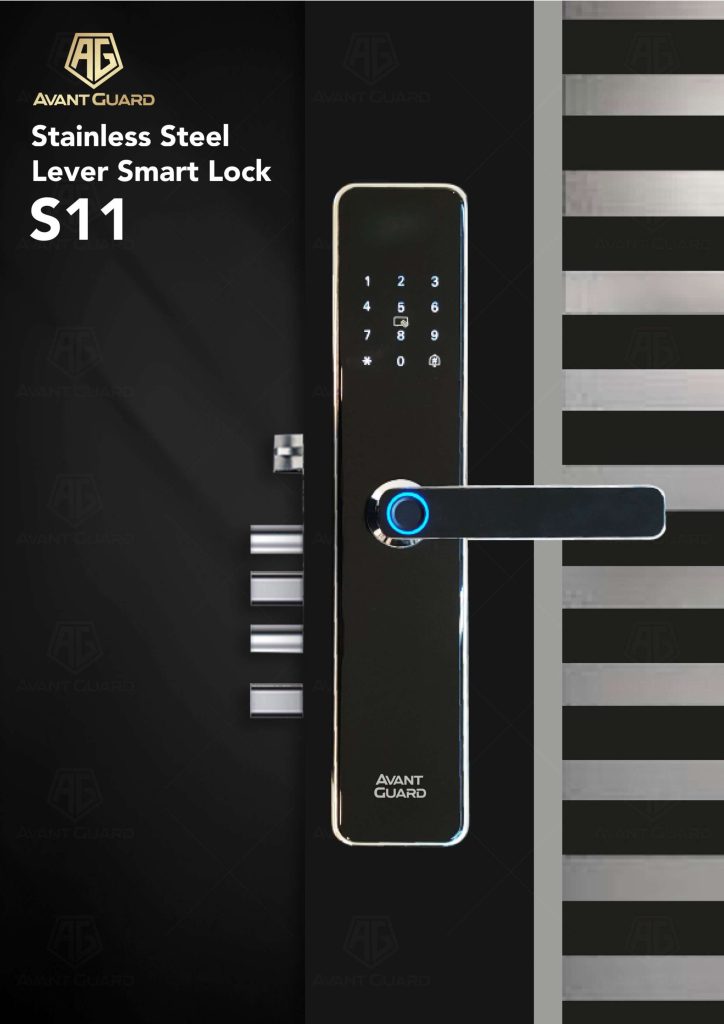

Avant Guard Smart Door Lock S11

Key Features
Stainless Steel Body
Single Panel Latch / Mortise Lock
Semi Auto
WiFi Capable
7 Unlocking Methods
Suitable for Wooden Door, Fire Door, Security Door

Color
Silver, Metallic Black

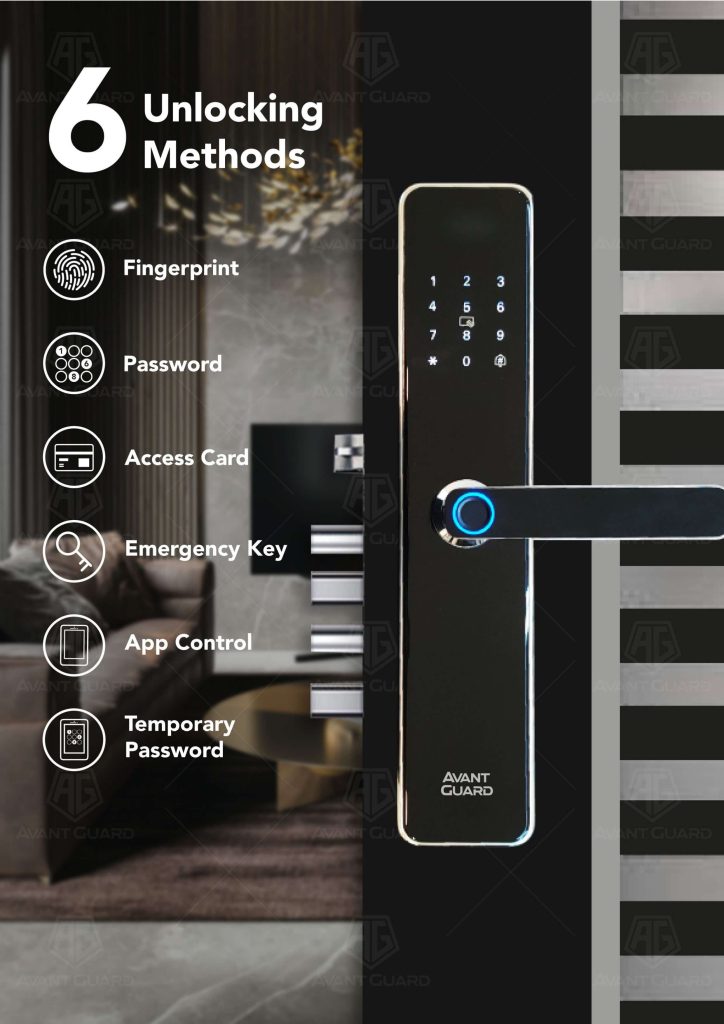

Unlocking Methods
Fingerprint: Yes
Card: Yes
Password: Yes
App Remote Access: Yes
Temporary Password: Yes
Key: Yes

Lock Mechanism
Auto Lock: Yes
Unlocking Mechanism: Semi Auto
Double Lock Mechanism: Handle Uplift
Standard Mortise Type: 6068
Mortise Material: 304SS

Connectivity
WiFi: Yes
WiFi mode: EZ
Zigbee: Optional

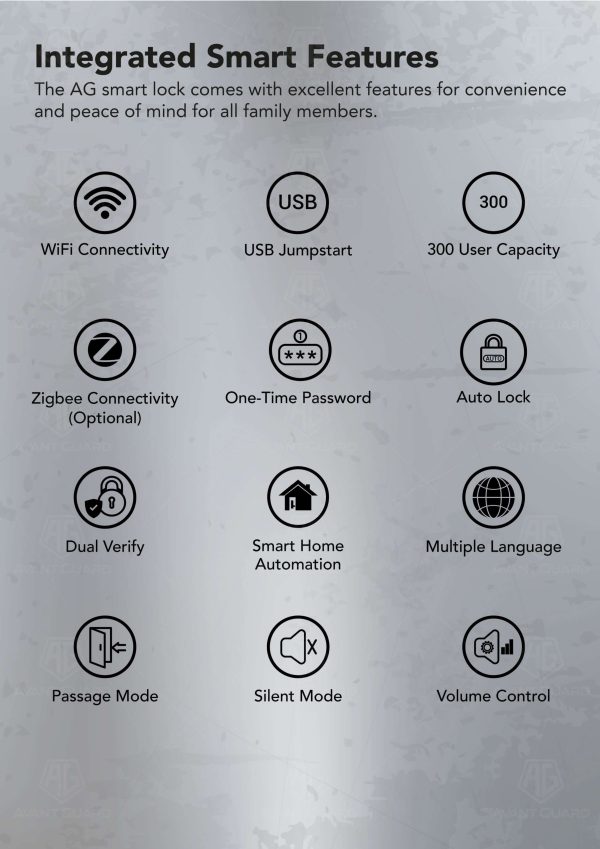

App Functions
Check-in Notification: Yes
Entry Logs and Records: Yes
Remote Unlocking: Yes
User Management: Yes

Temporary Password Type
Online Password: Yes
One Time Password: Yes
Offline Password: Yes

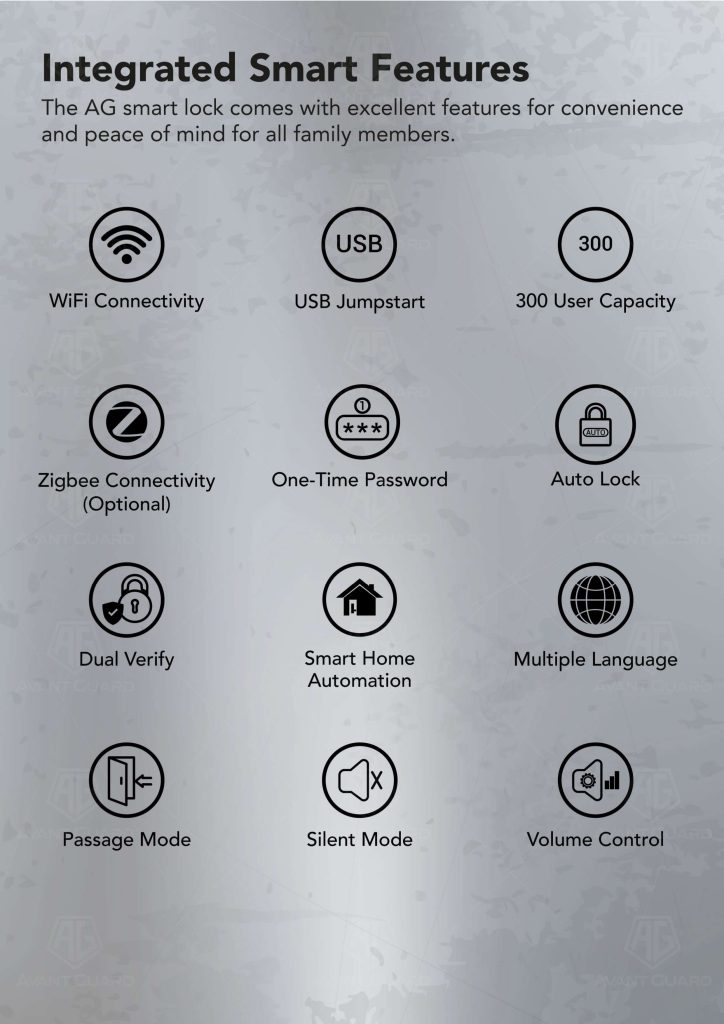

Lock Functions
Passage mode: Yes
Mute mode: Yes
Dual verify: Yes
Anti burglar alarm: Yes
Volume setting: Yes

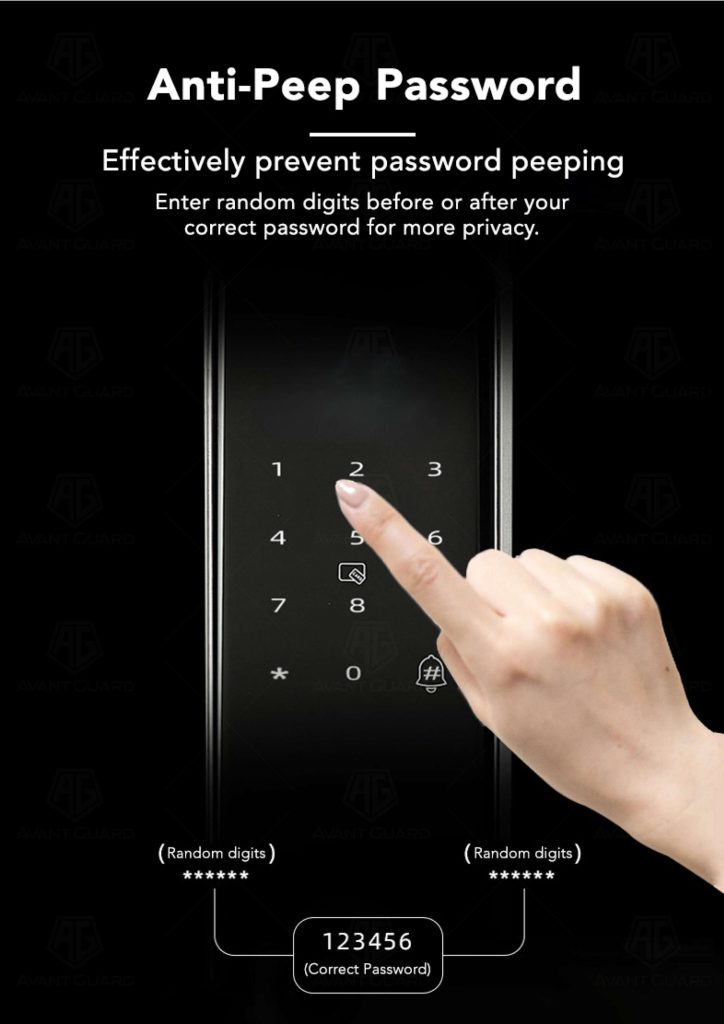

Virtual Password: Yes
Language: English & Mandarin

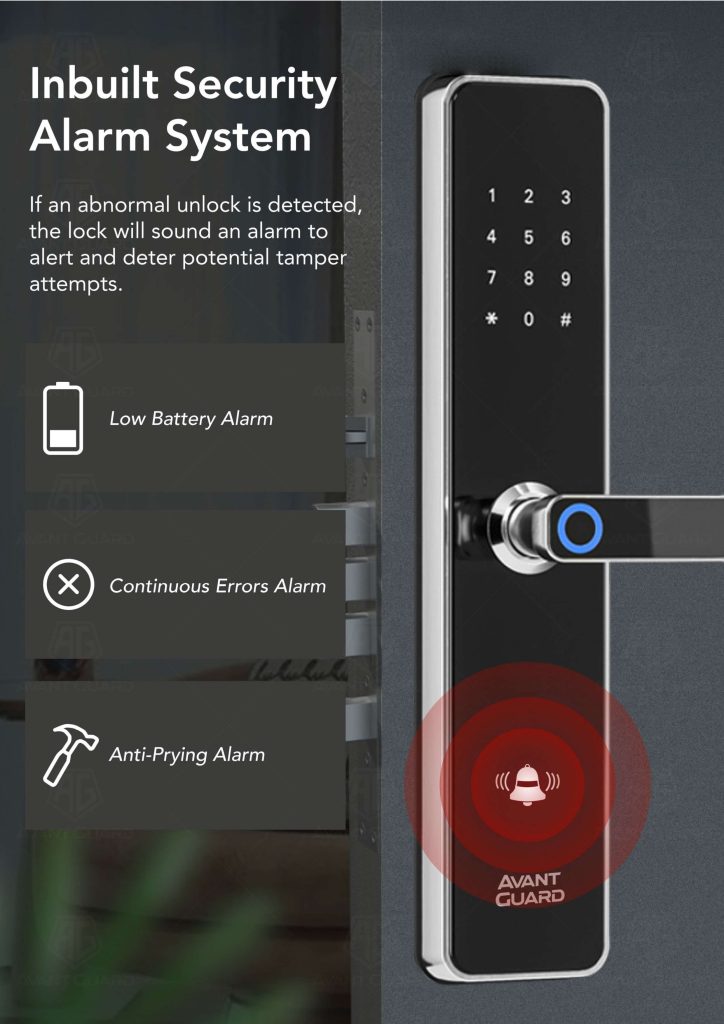

Security
Lock Tampering Alarm: Yes
Low Battery Alarm: Yes
Hijack Alarm: Yes
Continuous Failure Alarm: Yes

Requirement
Door Thickness (mm): 40-120
Door and Frame Gap (mm): 3
Wooden Door to Grille Door Gap (mm): 100
Suitable Door: Wooden Door, Fire Door, Security Door

Capacity
Fingerprint Record: 100
Password Record: 100
Card Record: 100
Total Admin Capacity: 9
Total User Capacity: 300

Technical Specs
Lock Type: Single Panel Latch / Mortise Lock

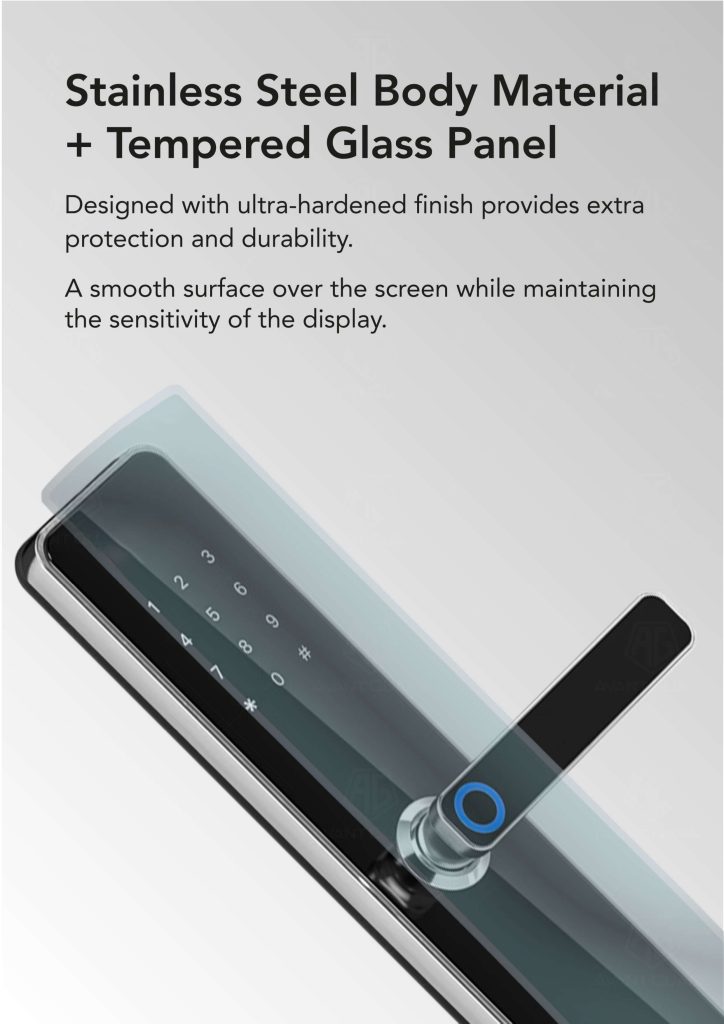

Body Material: Stainless Steel

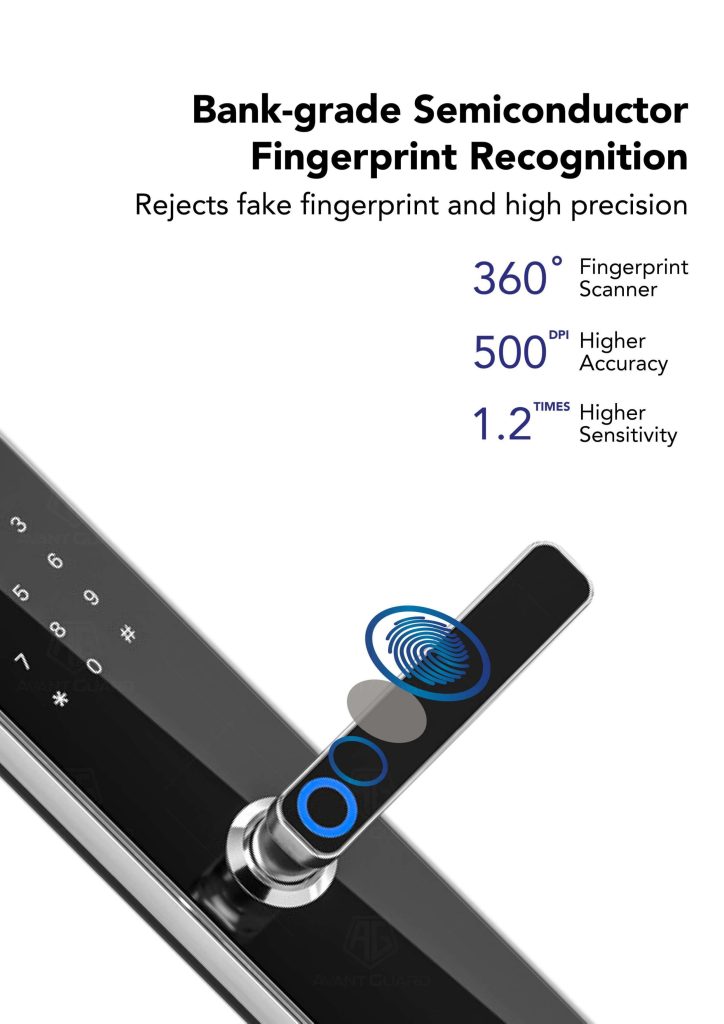

Fingerprint Material: FPC Semiconductor
LCD Screen: Yes
Lock Cylinder Grade: B+
Waterproofing: Splashproof
Powered By: Tuya
Warranty: 2 Years
App: Smartlife

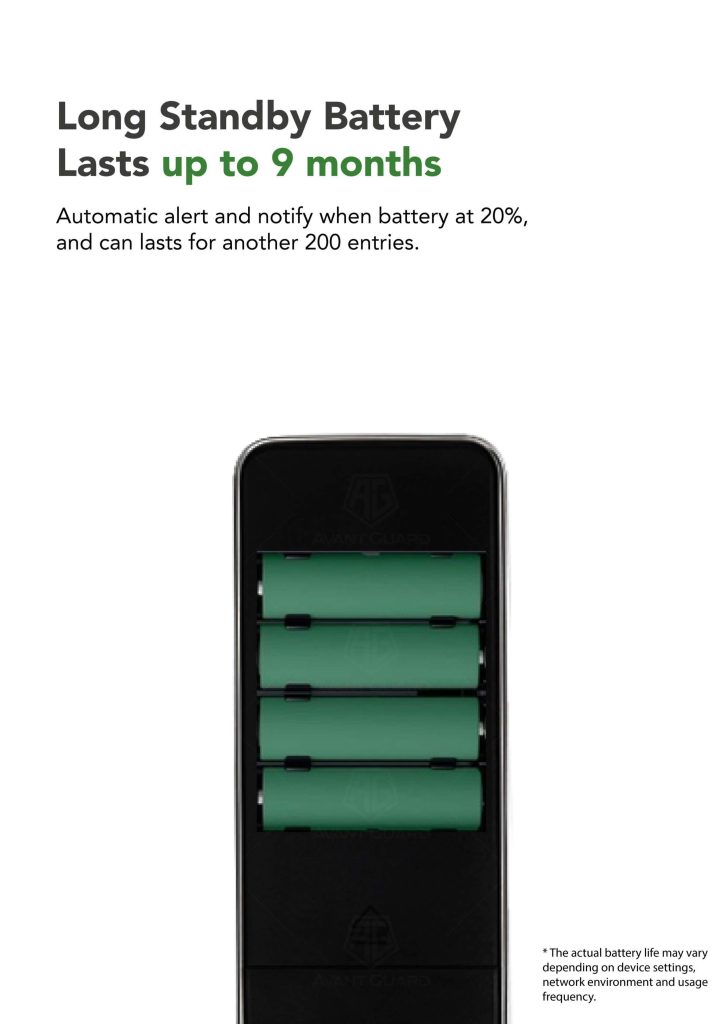

Battery Type: 4 X AA
Battery Life (Months): 6 – 9
Card Type: NFC
Working Temperature: -20 ~ 33
Working Voltage: 7.4v
Power: <=50µA
Working Current: 250mA

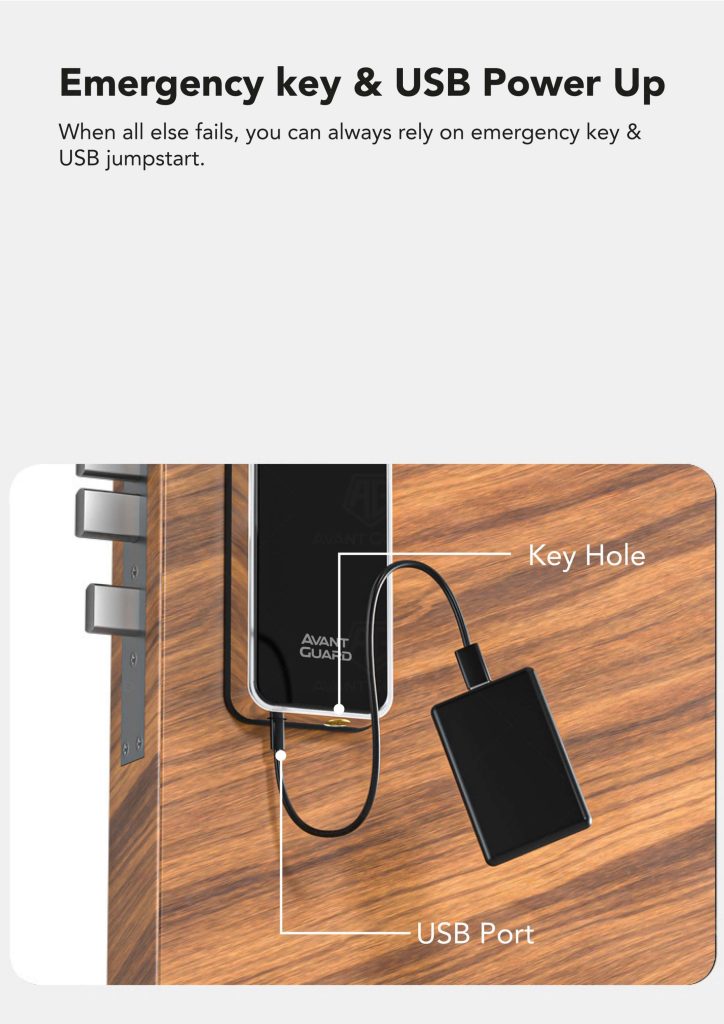

Emergency Power: Type C
Recognition Speed: <=1s
False Reject Rate (FRR): <=0.01%

Dimensions (cm)
Body Width (Front): 7.2
Body + Handle Width (Front): 15.4
Height (Front): 35.5
Max Depth (Front): 7.5
Min Depth (Front): 2.3
Body Width (Back): 7.2
Body + Handle Width (Back): 15.4
Height (Back): 35.5
Max Depth (Back): 7.5
Min Depth (Back): 2.3

Package List
Front Panel: Yes
Back Panel: Yes
2 Mechanical Keys: Yes
Lock Cylinder: Embedded
WiFi Module: Yes
Accessories Pack: Yes
2 Access Cards: Yes
4 AA Battery: Yes
Mortise: Yes
Warranty Card: Yes
User Manual: Yes
Installation Guide: Yes
