Avant Guard Smart Door Lock S50 (Zigbee)

Key Features
Live CCTV
Palm Vein
Combination Pin
Face ID
Gyroscope Lock Sensor
Stranger Detect with Video Record
Doorbell with Video Intercom
Long Standby Time
Works with Siri
Fully Automatic
8 Unlocking Methods
Suitable for Wooden and Fire Door, Security Door

Color
Midnight Black, Mocha Gold

Unlocking Methods
Fingerprint
Card
Password
App Remote Access
Face
Palm Vein

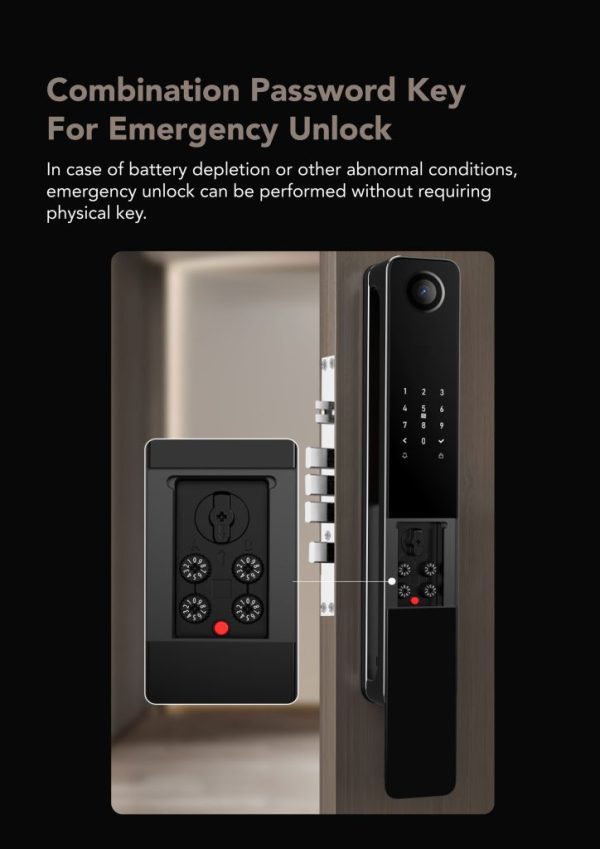

Combination Pin

Lock Mechanism
Auto Lock
Unlocking Mechanism: Fully Auto
Double Lock Mechanism: Gyroscope Sensor
Standard Mortise Type: 7068 Auto
Mortise Material: 304SS

Connectivity
Zigbee

App Functions
Check-in Notification
Entry Logs and Records
Remote Unlocking
User Management

Temporary Password
Online Password
One Time Password
Offline Password

Lock Functions
Mute mode
Dual verify
Anti burglar alarm
Volume setting
Virtual Password
Language: English & Mandarin

Security
Lock Tampering Alarm
Low Battery Alarm
Hijack Alarm
Continuous Failure Alarm

Requirement
Door Thickness (mm): 40-120
Door and Frame Gap (mm): 3
Wooden Door to Grille Door Gap (mm): 100
Suitable Door: Wooden Door, Fire Door, Security Door

Capacity
Fingerprint Record: 100
Password Record: 100
Card Record: 100
Total Admin Capacity: 9
Total User Capacity: 300
Face ID Record: 50
Palm Vein Records: 50

Technical Specs
Body Material: CNC Aluminium Alloy
Fingerprint Material: BYD
Lock Cylinder Grade: C
Waterproofing: Splashproof
Powered By: Tuya
Warranty: 3 Years
App: Smartlife
Battery USB Type: Type C
Battery Type: Lithium Rechargable
Battery Capacity (mAH): 8900
Battery Life (Months): 12 – 18
Card Type: NFC
SD Card
Working Temperature: -20 ~ 33
Working Voltage: 7.4v
Power: <=50µA
Working Current: 250mA
Emergency Power: Type C
Recognition Speed: <=1s
False Reject Rate (FRR): <=0.01%

Dimensions (cm)
Body Width (Front): 7.4
Body + Handle Width (Front): 7.4
Height (Front): 42.2
Max Depth (Front): 5.6
Min Depth (Front): 5.6
Body Width (Back): 8.2
Body + Handle Width (Back): 8.2
Height (Back): 43
Max Depth (Back): 7.8
Min Depth (Back): 3.9

Package List
Front Panel
Back Panel
Lock Cylinder
WiFi Module: Embedded
Accessories Pack
2 Access Cards
Rechargeable Battery
USB Cable
Warranty Card
User Manual
Installation Guide
