Key Features

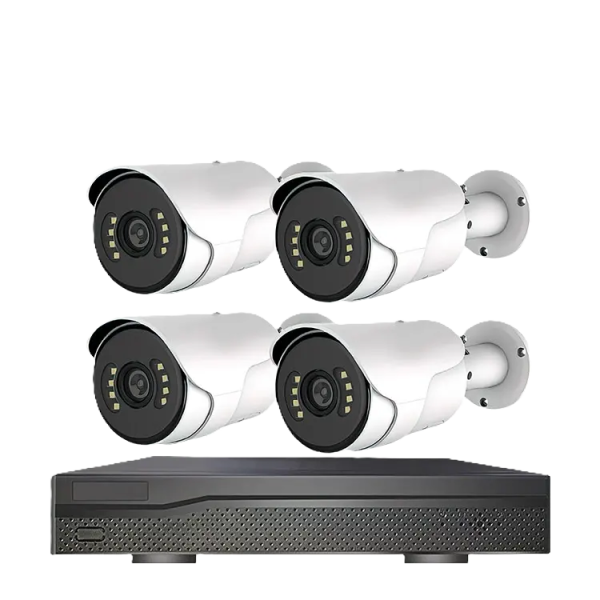

High-definition CCTV system with network video recorder
Supports up to 4 / 8 / 16 IP cameras
Remote viewing via app with motion detection alerts
Full HD video recording and playback
Plug & play setup with auto camera detection
Ideal for home, office, and commercial surveillance

Color
White

Compatibility
Channel Options: 4 / 8 / 16
Camera Compatibility: IP cameras
Max Resolution Support: 5MP
App Support: Tuya / SmartLife
Alexa / Google Voice Assistant: Not supported

Connectivity
Network Interface: 1 x RJ45 Ethernet
USB Interface: 2 x USB 2.0
Video Output: HDMI / VGA
Remote Access: Yes (via mobile app)
Mobile App: Android / iOS
Storage Support: 1 x SATA HDD (up to 8TB, HDD not included)

Camera Features
Resolution: 5MP
Lens: 3.6mm fixed

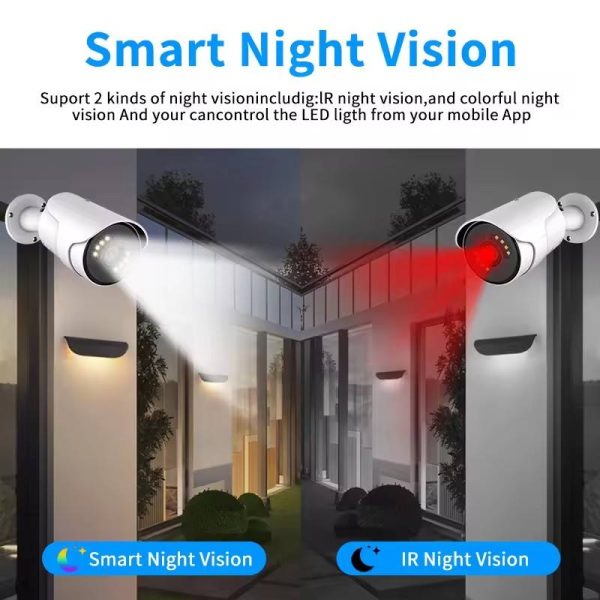

Night Vision: Yes (IR LEDs)

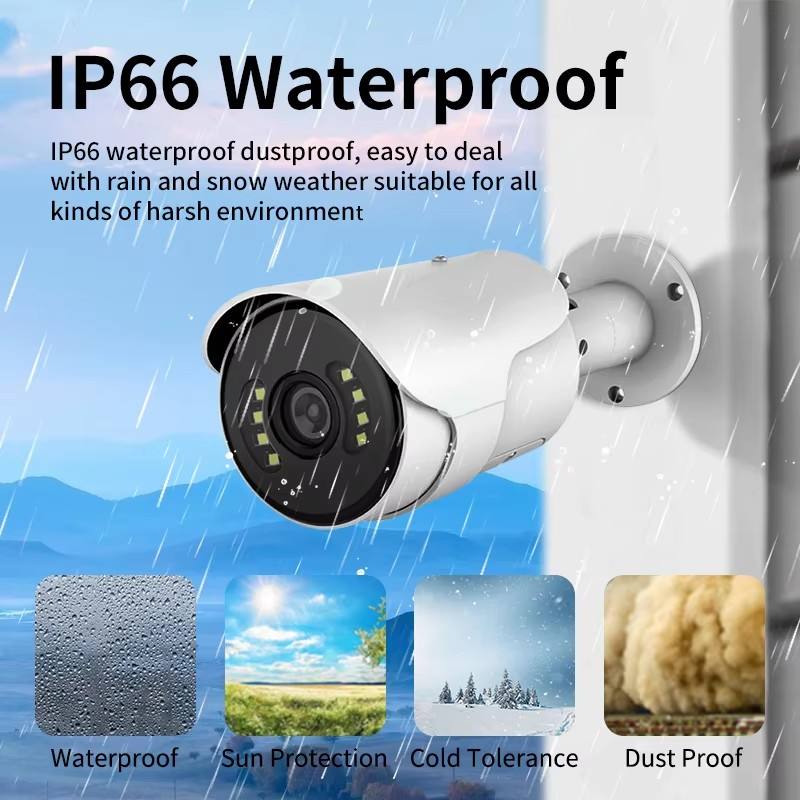

Weatherproof Rating: IP66 (Outdoor Use)
Audio: Optional (Mic built-in model only)
Power Supply: 12V DC

Smart Functions
Motion Detection: Yes
Motion Alerts: Push Notification / Email
Recording Modes: Manual / Scheduled / Motion Detection
Playback: Local and Remote
User Access: Multi-device access via app

Technical Specs

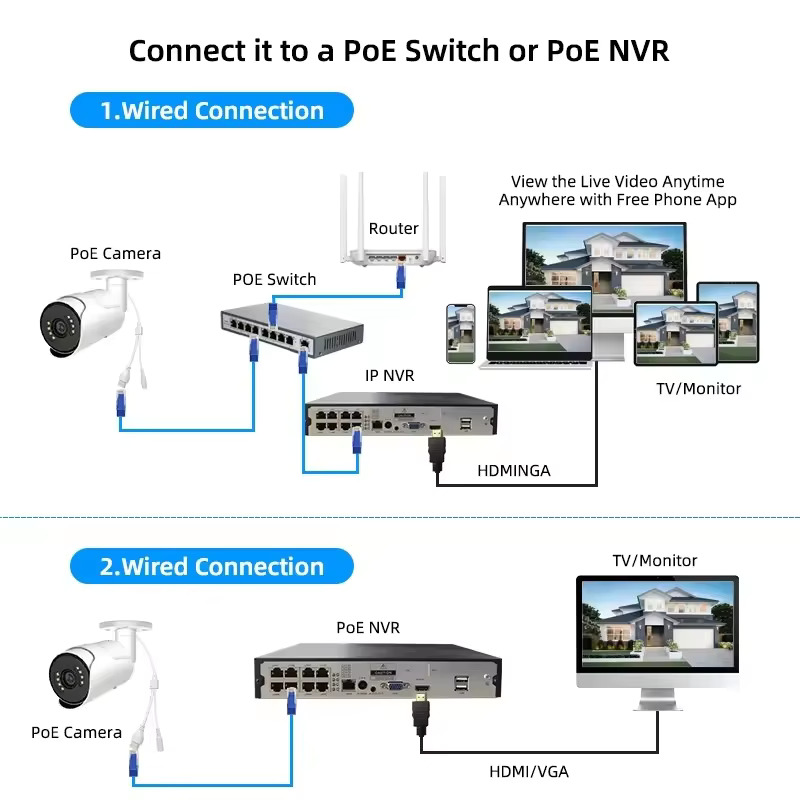

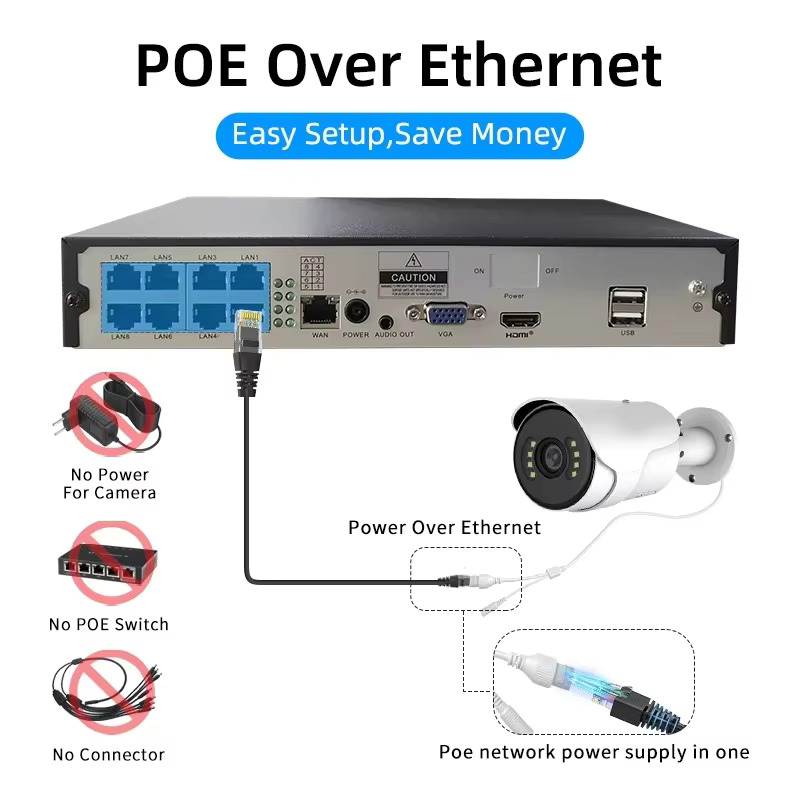

NVR Type: PoE
Video Compression: H.265 / H.265+
Operating System: Embedded Linux
Power Input: 100–240V AC
Working Temperature: -10°C to 55°C

Dimensions (NVR Unit – cm)
Width: 25.0
Depth: 22.0
Height: 4.5

Package List
1 x NVR (8 / 16 Channel)
4 / 8 / 16 x IP Cameras
1 x Power Adapter
1 x Mouse
1 x HDMI Cable
1 x Network Cable
1 x Screws & Mounting Accessories
1 x User Manual

Warranty
1 Year
