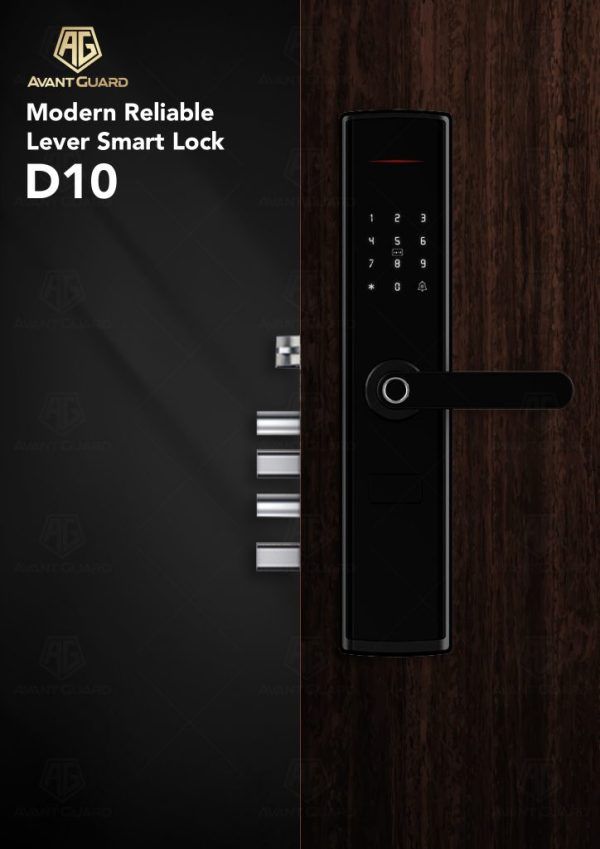

Key Features
5 Unlocking Methods
Suitable for Wooden and Fire Door, Security Door

Color
Black

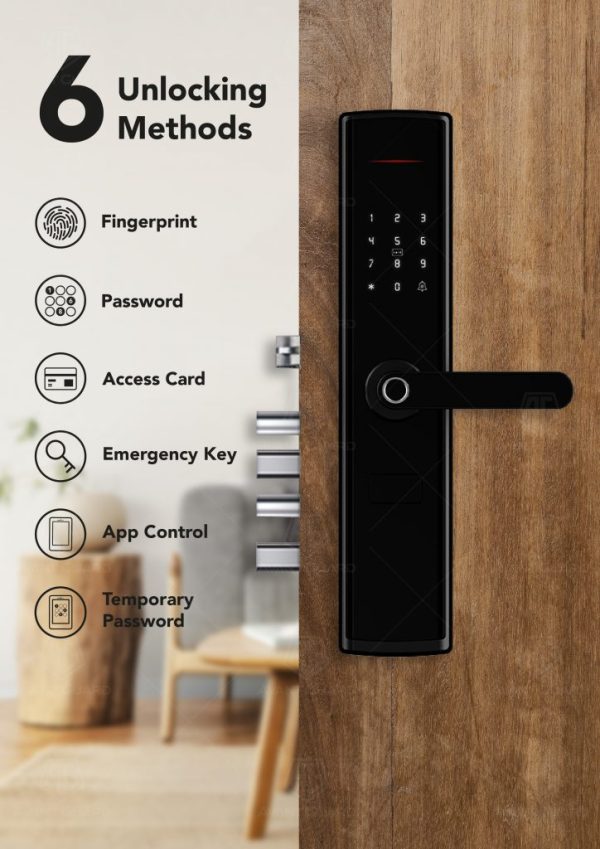

Unlocking Methods

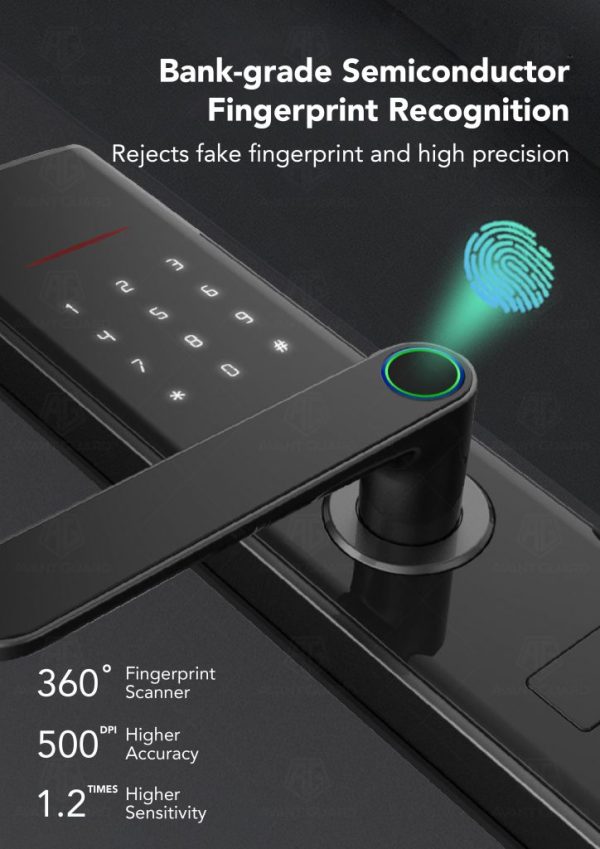

Fingerprint
Card
Password
App Remote Access
Key

Lock Mechanism
Auto Lock
Unlocking Mechanism: Semi Auto
Double Lock Mechanism: Handle Uplift
Standard Mortise Type: 6068
Mortise Material: 304SS

Connectivity
WiFi
WiFi mode: EZ
Zigbee (optional)

App Functions

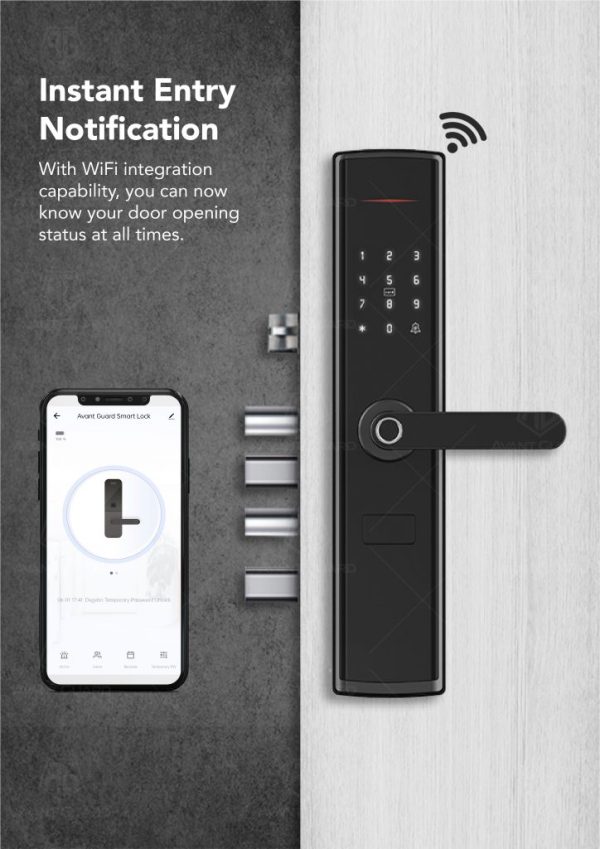

Check-in Notification
Entry Logs and Records
Remote Unlocking
User Management

Temporary Password
Online Password
One Time Password

Lock Functions
Passage mode
Mute mode
Dual verify
Anti burglar alarm
Volume setting

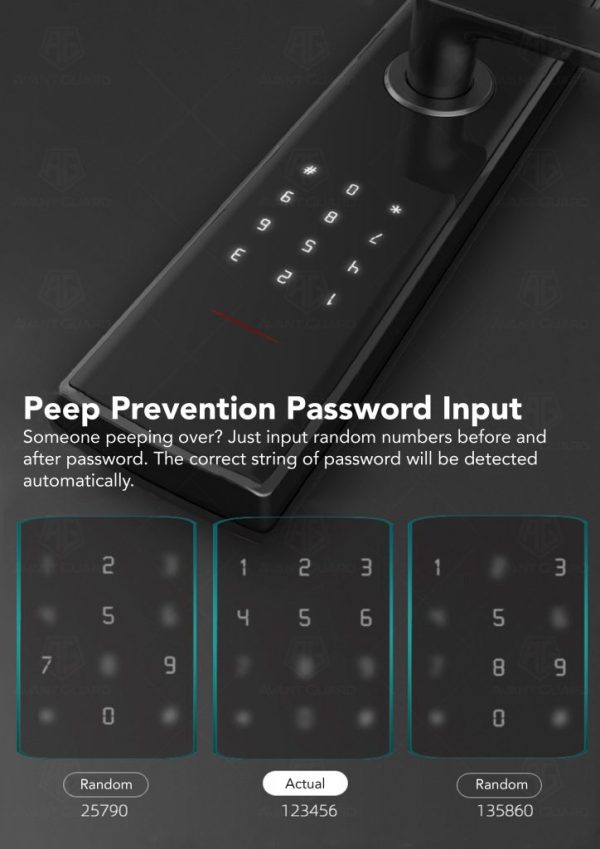

Virtual Password
Language: English & Mandarin

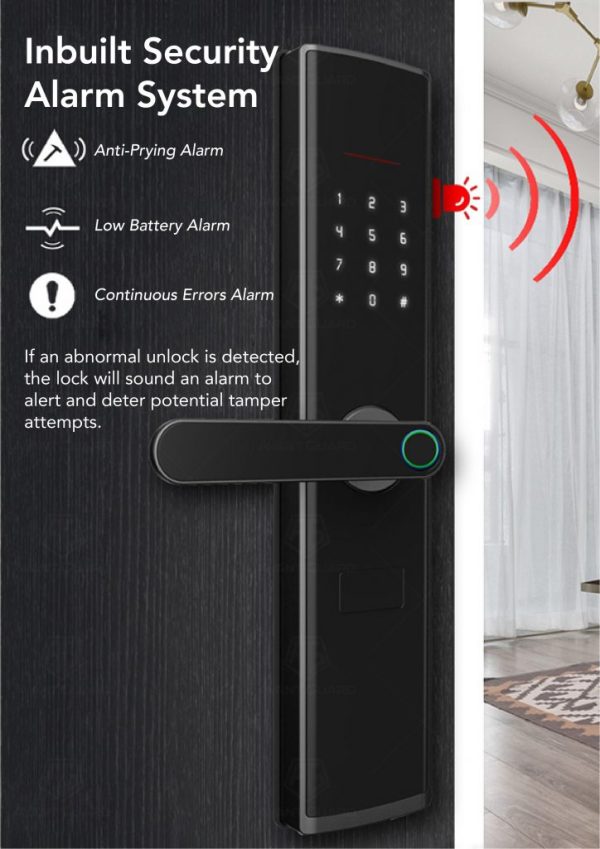

Security
Lock Tampering Alarm
Low Battery Alarm
Hijack Alarm
Continuous Failure Alarm

Requirement
Door Thickness (mm): 40-120
Door and Frame Gap (mm): 3
Wooden Door to Grille Door Gap (mm): 100
Suitable Door: Wooden Door, Fire Door, Security Door

Capacity
Fingerprint Record: 100
Password Record: 100
Card Record: 100
Total Admin Capacity: 9
Total User Capacity: 300

Technical Specs

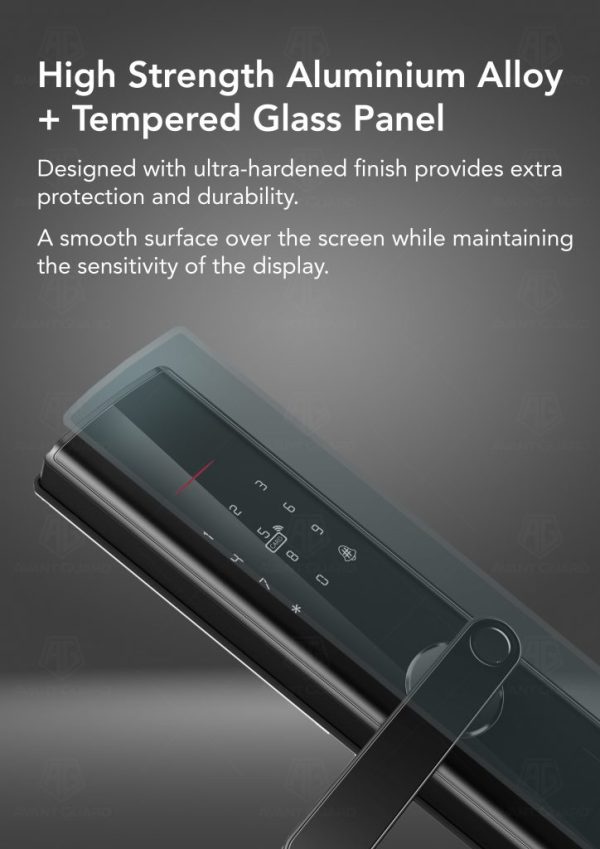

Body Material: Aluminium Alloy
Fingerprint Material: FPC Semiconductor
Lock Cylinder Grade: C
Waterproofing: Splashproof
Powered By: Tuya
Warranty: 2 Years
App: Smartlife

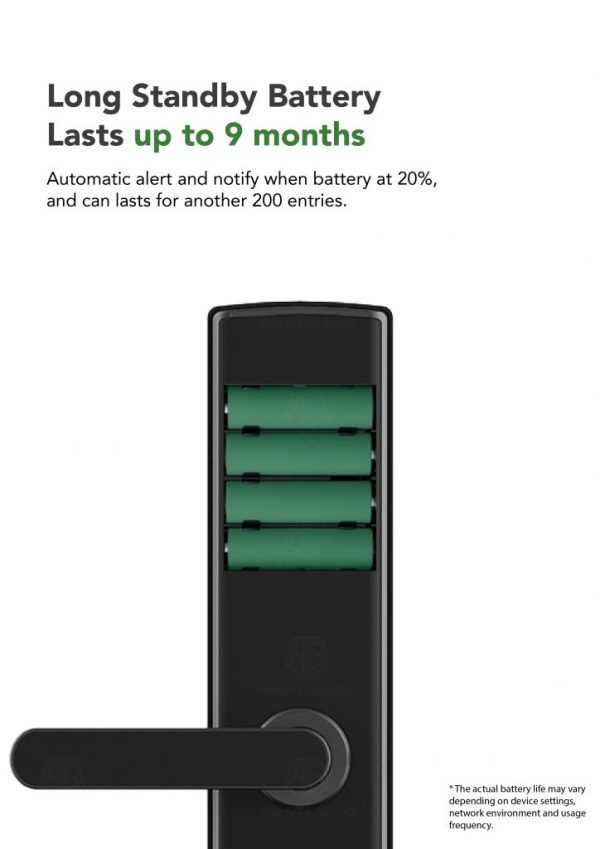

Battery Type: 4 X AA
Battery Life (Months): 6 – 9
Card Type: NFC
Child Lock
Working Temperature: -20 ~ 33
Working Voltage: 7.4v
Power: <=50µA
Working Current: 250mA

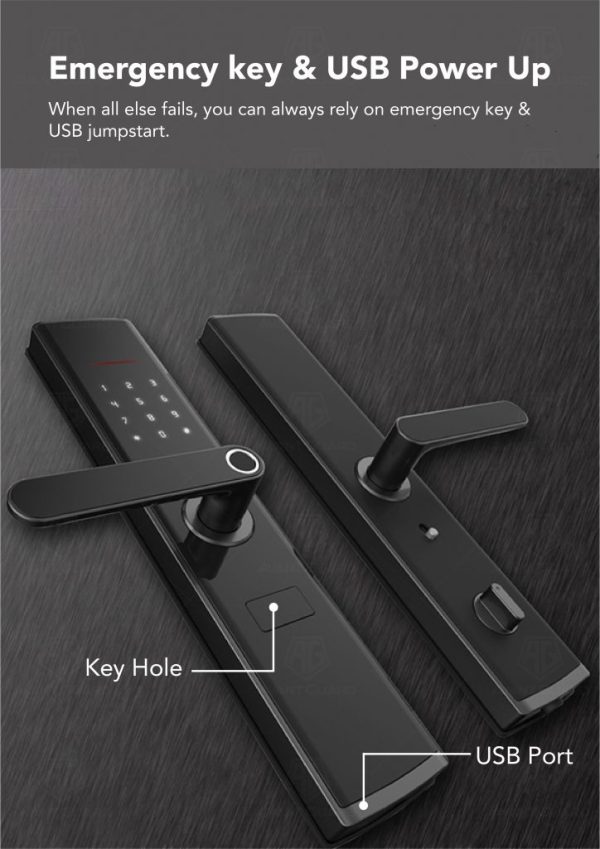

Emergency Power: MicroUSB
Recognition Speed: <=1s
False Reject Rate (FRR): <=0.01%

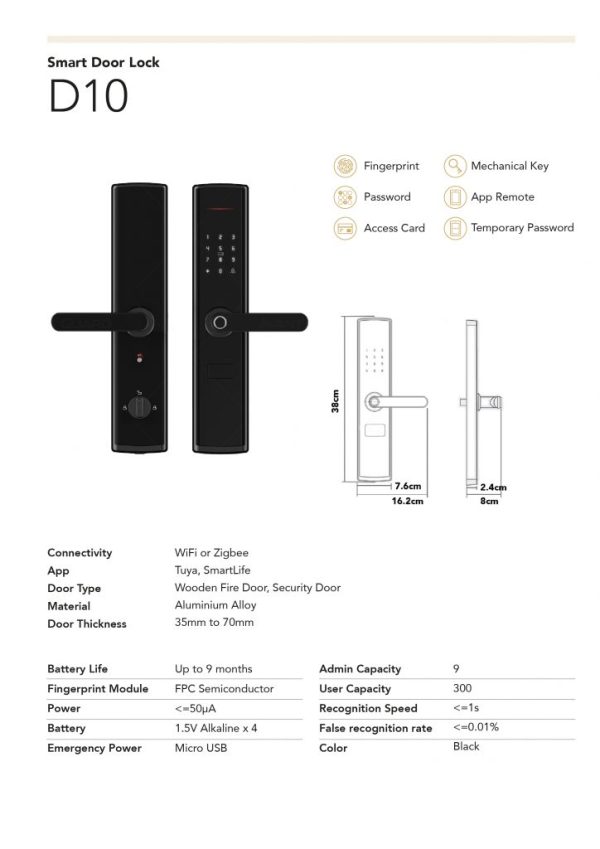

Dimensions (cm)
Body Width (Front): 7.8
Body + Handle Width (Front): 16
Height (Front): 37.7
Max Depth (Front): 7.2
Min Depth (Front): 2.5
Body Width (Back): 7.8
Body + Handle Width (Back): 16
Height (Back): 37.7
Max Depth (Back): 7.2
Min Depth (Back): 7.2

Package List
Front Panel
Back Panel
2 Mechanical Keys
Lock Cylinder
WiFi Module
Accessories Pack
2 Access Cards
4 AA Battery
Mortise
USB Cable
Warranty Card
User Manual
Installation Guide
