Key Features
Palm Vein Recognition
Face ID
Live CCTV
Doorbell with Video Intercom
Doorbell with Photo Capture
Photo Record
Dual Panel Rim Lock
Fully Auto
WiFi Capable
10 Unlocking Methods
Suitable for Grille Door
Color
Matte Black

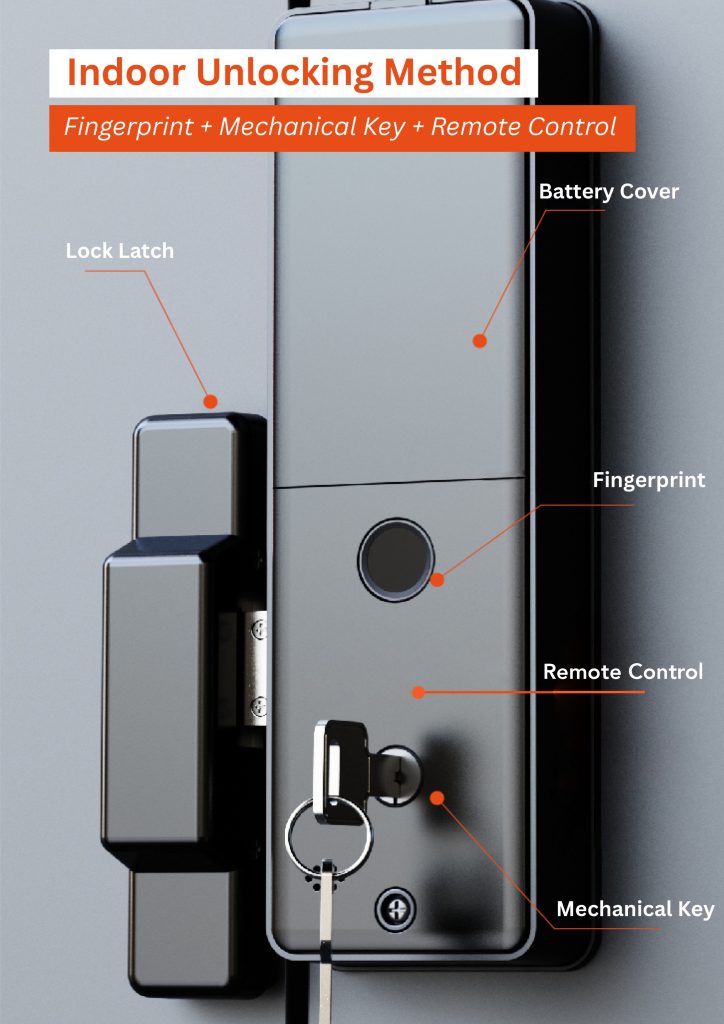

Unlocking Methods
Palm Vein: Front Only
Face: Front Only
Fingerprint: Front & Back
Card: Front Only
Password: Front Only
App Remote Access: Front & Back
Temporary Password: Front & Back
Key: Back Only
RF Remote: Back Only
Lock Mechanism
Auto Lock: Yes
Unlocking Mechanism: Fully Auto
Double Lock Mechanism: Fully Auto
Standard Mortise Type: External Lock
Mortise Material: 304SS
Connectivity
WiFi: Yes
WiFi mode: EZ
App Functions
Check-in Notification: Yes
Entry Logs and Records: Yes
Remote Unlocking: Yes
User Management: Yes
Temporary Password Type
Online Password: Yes
One Time Password: Yes
Offline Password: Yes
Lock Functions
Mute mode: Yes
Anti burglar alarm: Yes
Volume setting: Yes
Virtual Password: Yes
Language: English & Mandarin
Security
Lock Tampering Alarm: Yes
Low Battery Alarm: Yes
Hijack Alarm: Yes
Continuous Failure Alarm: Yes
Requirement
Door Thickness (mm): 25-50
Door and Frame Gap (mm): 3
Wooden Door to Grille Door Gap (mm): 100
Suitable Door: Grille Door
Capacity
Fingerprint Record: 200
Password Record: 200
Card Record: 200
Total Admin Capacity: 9
Total User Capacity: 1000
Face ID Record: 200
Palm Vein Records: 200
Technical Specs

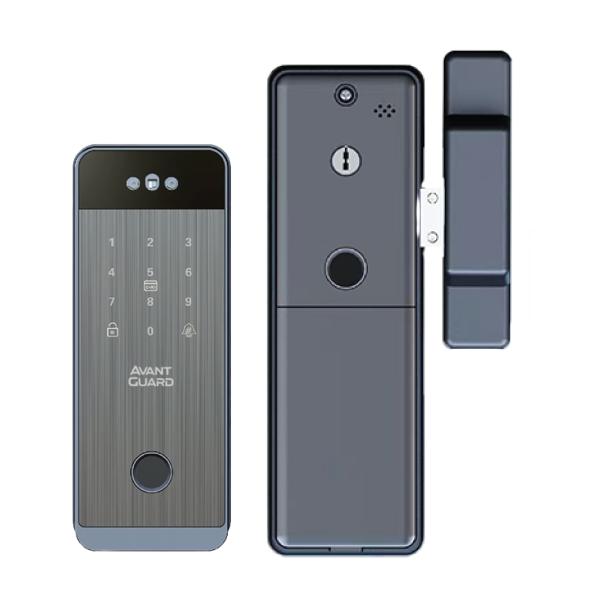

Lock Type: Dual Panel Rim Lock
Body Material: CNC Aluminium
Alloy
Fingerprint Material: FPC Semiconductor
Lock Cylinder Grade: C
Waterproofing: Splashproof
Powered By: Tuya
Warranty: 2 Years
App: Smartlife
Battery USB Type: Type C
Battery Type: Lithium Rechargable

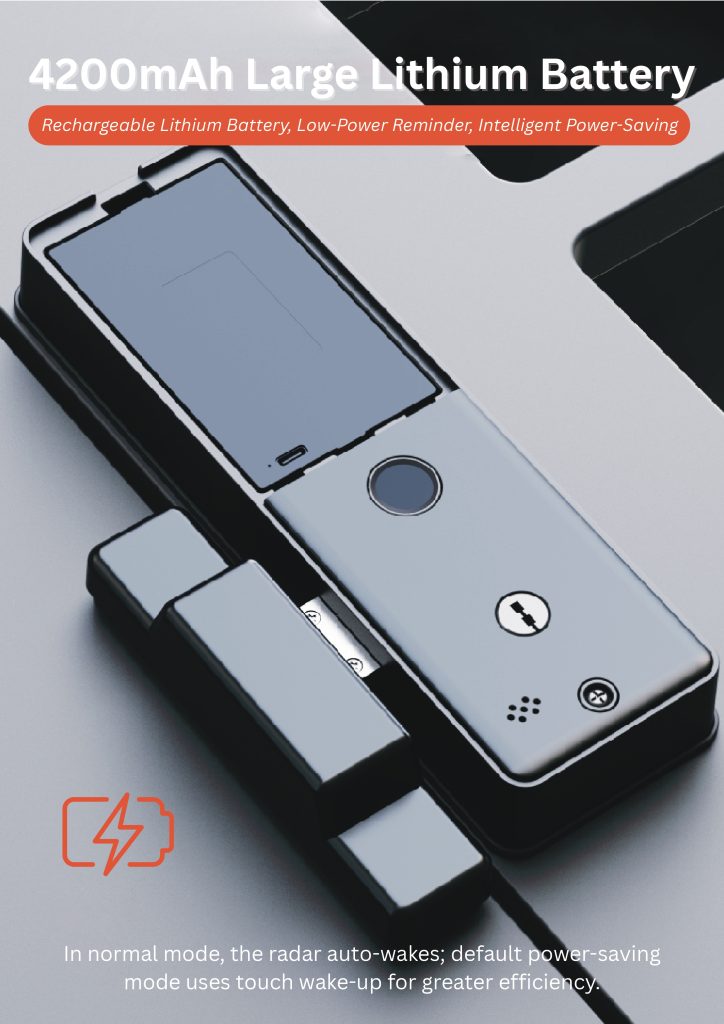

Battery Capacity (mAH): 4200
Battery Life (Months): 6 – 9
Card Type: M1, IC, 2nd Gen ID Card
Working Temperature: -20 ~ 60
Working Voltage: 7.4v
Power: <=50µA
Working Current: 250mA
Emergency Power: Type C
Recognition Speed: <=1s
False Reject Rate (FRR): <=0.01%

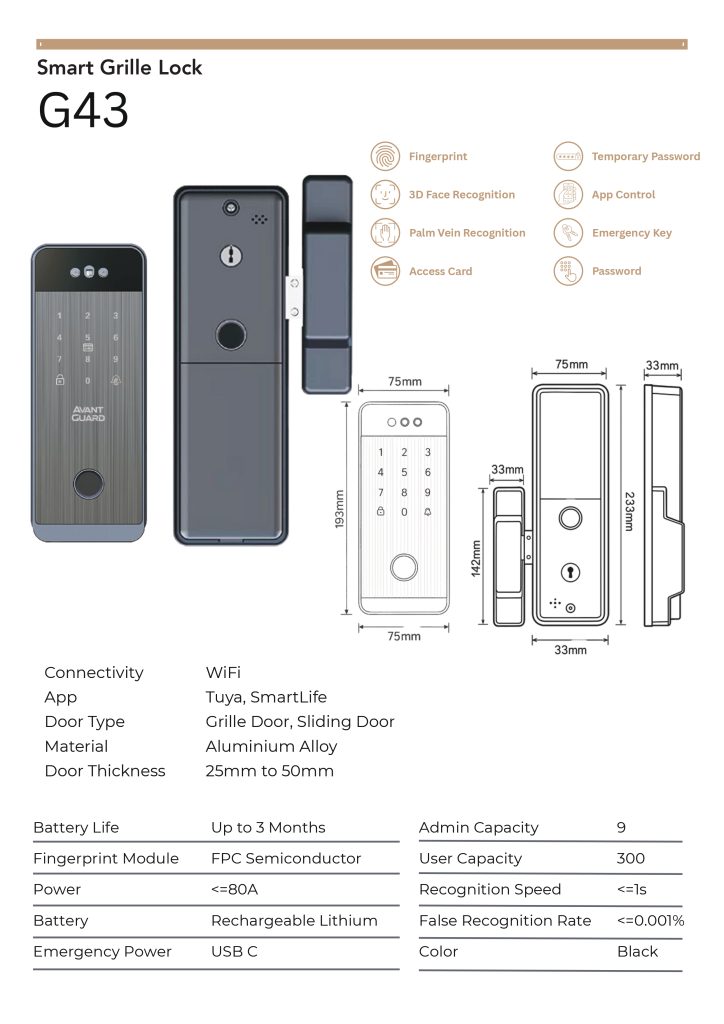

Dimensions (cm)
Body Width (Front): 7.5
Body + Handle Width (Front): 7.5
Height (Front): 19.3
Max Depth (Front): 2.2
Min Depth (Front): 2.2
Body Width (Back): 7.5
Body + Handle Width (Back): 7.5
Height (Back): 23.3
Max Depth (Back): 3.3
Min Depth (Back): 3.3
Package List
Front Panel: Yes
Back Panel: Yes
2 Mechanical Keys: Yes
Lock Cylinder: Embedded
WiFi Module: Embedded
Accessories Pack: Yes
2 Access Cards: Yes
Rechargeable Battery: Yes
USB Cable: Yes
Warranty Card: Yes
User Manual: Yes
Installation Guide: Yes
RF Remote Control: Yes
